Understand the Plug-In Picture

A single energy-monitoring plug moved from room to room over two weeks tells you more about your household electricity baseline than a dozen permanent app-connected sockets.

COMPARE EVERYDAY USES

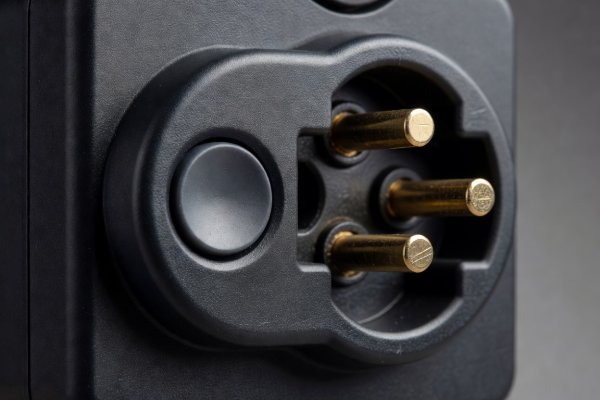

Close-up view of a heavy-duty energy monitoring plug socket face and recessed physical button

Diagnostic Routine

Finding the hidden 40-watt continuous draw

Most households assume phone chargers and television standby lights account for phantom power. In reality, modern phone chargers idle below 0.1 watts. The real culprits are older audio receivers running warm in a cabinet (18–35W idle), laser printers with instant-warm fusers, basement dehumidifiers with stuck humidistats, and secondary garage freezers with worn door seals that run their compressor 80% of the day.

Before buying a four-pack of smart plugs to turn things off, use one accurate metering plug to audit each suspect cord for 48 hours. If an entertainment rack draws 28 watts overnight, adding a scheduled cutoff saves roughly 100 kWh per year. If a lamp draws 0.0 watts when switched off, adding a smart plug actually increases electricity consumption because the plug's own Wi-Fi radio consumes 0.8 watts continuously.

Plug Self-Consumption0.6W (Zigbee) to 1.2W (Wi-Fi with relay closed)

Break-Even ThresholdAppliance must waste >2.5W on standby to justify a smart plug

Shunt Resistor Accuracy±1.5% on loads above 5W; less accurate below 2W

Power-Loss MemoryConfigurable: Return to ON, OFF, or Last State

Comparing four categories of household energy monitors

Not every socket needs wireless connectivity. Depending on whether you are auditing a fridge, automating an espresso machine warm-up, or tracking a home server rack, pick the hardware class that avoids unnecessary app lock-in.

Hardware Class	Representative Examples	Data Retention & Export	Relay Protection	Where It Fits Best
Standalone LCD Watt Meter	Kill A Watt P4400 / Pass & Seymour / Brennenstuhl PM 231	On-screen LCD only; resets if unplugged (unless battery backed)	No relay (pass-through shunt only, safer for compressors)	48-hour fridge, freezer, and washing machine cycle audits
Matter 1.3+ Energy Plug	Eve Energy (Thread) / Tapo P110M / ThirdReality Gen2	Local Thread/Wi-Fi telemetry + home platform graphs	Over-current thermal cutoff at 15A / 1800W	Routine schedules for coffee makers, humidifiers, and window fans
Open-Firmware Local Plug	Shelly Plus Plug US/UK / Sonoff S31 (Tasmota/ESPHome)	Local web UI, MQTT, CSV, no cloud account needed	Configurable wattage threshold auto-shutoff (e.g., cut at 1600W)	Sump pump alerts, washing-machine-finished notifications
Heavy-Duty Appliance Module	Zooz ZEN15 (Z-Wave 800) / Sinopé Load Controller	Hub-logged historical kWh and voltage drop tracking	Inrush-rated relay for 1/2 HP motors and 15A inductive loads	Dehumidifiers, portable AC units, workshop dust collectors

Safety Rule #1

Never switch a refrigerator with a standard relay

When you plug a refrigerator or chest freezer into a standard smart plug to measure its energy use, an accidental tap in a smartphone app—or a firmware update that briefly cycles the relay—can turn the power off or rapid-cycle the compressor. Always enable "Relay Lock" or "Child Lock" in the device settings so the physical button and app toggle cannot cut power to food storage.

Key SettingAlways-On / Detached Relay Mode

Power Outage BehaviorMust be set to "Restore ON"

Laundry Routine

Using watt thresholds instead of smart washers

You do not need a Wi-Fi washing machine to know when a load in the basement has finished. Plugging a standard washing machine into a heavy-duty metering module lets you trigger a simple rule: when power rises above 50W for five minutes and then stays below 3W for three minutes, send one quiet notification to the kitchen display.

Spin Peak Draw400W–800W (Cold wash); 1800W+ (Internal heater)

Idle End State1.2W to 2.8W before door unlock

Expandable setup notes for power plugs

Why stacking two plugs in a duplex outlet blocks the second socket

Many circular or wide rectangular plugs overhang the second receptacle on a standard wall faceplate. Before ordering, check that the vertical height is under 38 mm (1.5 inches) for North American NEMA 5-15 outlets, or under 52 mm width for horizontal UK BS 1363 dual gang sockets.

Why space heaters and smart plugs are a fire hazard

Portable space heaters draw a continuous 1500W for hours at a time. Even if a smart plug is stamped "15A Max," its tiny internal PCB relay contacts can overheat under sustained maximum load, and remote starting an unattended heater near curtains or laundry violates UL/IEC household safety guidelines. Keep space heaters plugged directly into the wall outlet.
